Key Features

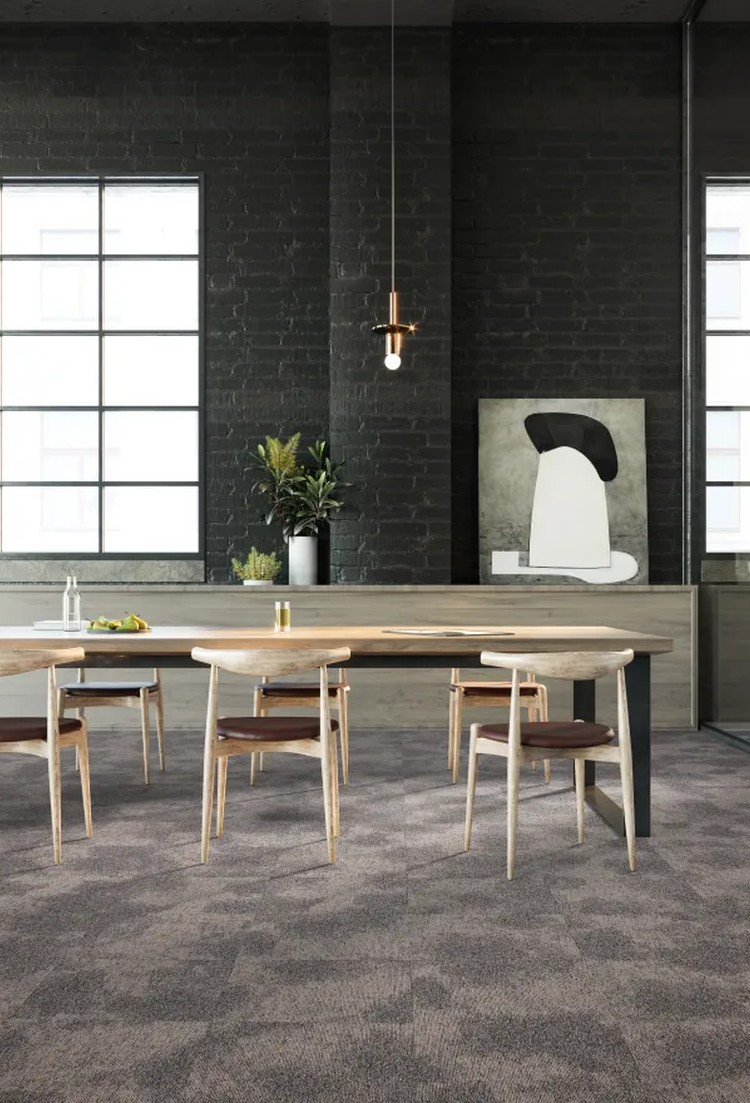

- DSGN Cloud’s pattern is inspired by cloud formations.
- 16 colours
- Standard 50 x 50 cm tile
- Construction: Tufted 1/12” Loop
- Classification 33 – LC2 (EN 1307)
- back2back backing with minimum 70% post-industrial recycled content
Technical Details
| Type of floorcovering | Carpet Tile |
|---|---|
|
Formats |
Carpet tile |
|
Standard size |
50 x 50 cm |
|
Optional sizes (from 100 m²) |
25 x 100 cm; 50 x 100 cm; 100 x 100 cm |
|
Construction |
Tufted 1/12” Loop |
|
Pile material |
100% PA6 Solution Dyed Nylon |
|
Secondary backing |
back2back: standard carpet tile |
|
Optional backings |
comfortBACK; ecoBACK; comfortBACK ECO |
|
Total weight |
Ca. 4.600 g/m² |
|
Pile weight |
Ca. 680 g/m² |
|
Pile above backing |
Ca. 420 g/m² |
|
Total height |
Ca. 6,7 mm |
|
Pile height |
Ca. 3,3 mm |
|
Pile density |
Ca. 0,127 g/cm³ |
|
Tuft density |
Ca. 193.000 /m² |
|
Size & packing |
50 x 50 cm | 19,7” x 19,7” |
|
Number of colours |
16 |
Performance Requirements
| Property | Standard | Result |
|---|---|---|
|
Classification |
EN 1307 |
33 – LC2 |
|
Castor Chair Suitability |
EN 985 |
A : continuous use |
|
Fire Resistance |
EN 13501-1: Bfl -s1 |
E-648: Class 1 |
|
Fastness To Light |
ISO 105-B02 |
≥ 7 |
|
Rubbing Fastness |
EN ISO 105-X12 |
≥ 4 |
|
Colour Fastness To Water |
EN ISO 105-E01 |
≥ 4 |
|
Dimensional Stability |
EN 986 |
max. 0,2 % |
|
Thermal Resistance |
ISO 8302 |
0.070 m²K/W |
|
Permanent Antistatic |
ISO 6356 |
≤ 2 kV |
|
Transversal Resistance |
ISO/DIS 10965 |
≤ 1 x 10⁹ Ohm |
Acoustic Performance
| Property | Standard | Result |
|---|---|---|
|
Impact Noise Rating |
ISO 10140 |
ΔLw: 26 dB |
|
Sound Absorption |
ISO 354 |
αw: 0,15 |
Sustainability
| Property | Standard | Result |
|---|---|---|
|
Recycled Content |
— |
Minimum 70% post-industrial in back2back backing |
|
GUT Registration |
— |
GUT-NR CC1A5FAA |
